Display ERP

Different ways to display a multichannel event-related potential (ERP).

# Authors: Quentin Barthélemy
#
# License: BSD (3-clause)

import numpy as np
import mne
from matplotlib import pyplot as plt
from pyriemann.utils.viz import plot_waveforms

Load EEG data

# Set filenames
data_path = str(mne.datasets.sample.data_path())
raw_fname = data_path + "/MEG/sample/sample_audvis_filt-0-40_raw.fif"
event_fname = data_path + "/MEG/sample/sample_audvis_filt-0-40_raw-eve.fif"

# Read raw data, select occipital channels and high-pass filter signal
raw = mne.io.Raw(raw_fname, preload=True, verbose=False)
raw.pick_channels(['EEG 057', 'EEG 058', 'EEG 059'], ordered=True)
raw.rename_channels({'EEG 057': 'O1', 'EEG 058': 'Oz', 'EEG 059': 'O2'})
n_channels = len(raw.ch_names)
raw.filter(1.0, None, method="iir")

# Read epochs and get responses to left visual field stimulus
tmin, tmax = -0.1, 0.8
epochs = mne.Epochs(
    raw, mne.read_events(event_fname), {'vis_l': 3}, tmin, tmax, proj=False,
    baseline=None, preload=True, verbose=False)
X = 5e5 * epochs.get_data()
print('Number of trials:', X.shape[0])
times = np.linspace(tmin, tmax, num=X.shape[2])

plt.rcParams["figure.figsize"] = (7, 12)
ylims = []
Removing projector <Projection | PCA-v1, active : False, n_channels : 102>
Removing projector <Projection | PCA-v2, active : False, n_channels : 102>
Removing projector <Projection | PCA-v3, active : False, n_channels : 102>
Filtering raw data in 1 contiguous segment
Setting up high-pass filter at 1 Hz

IIR filter parameters
---------------------
Butterworth highpass zero-phase (two-pass forward and reverse) non-causal filter:
- Filter order 8 (effective, after forward-backward)
- Cutoff at 1.00 Hz: -6.02 dB

Number of trials: 73

Plot all trials

This kind of plot is a little bit messy.

fig = plot_waveforms(X, 'all', times=times, alpha=0.3)
fig.suptitle('Plot all trials', fontsize=16)
for i_channel in range(n_channels):
    fig.axes[i_channel].set(ylabel=raw.ch_names[i_channel])
    fig.axes[i_channel].set_xlim(tmin, tmax)
    ylims.append(fig.axes[i_channel].get_ylim())
fig.axes[n_channels - 1].set(xlabel='Time')
plt.show()
Plot all trials

Plot central tendency and dispersion of trials

This kind of plot is well-spread, but mean and standard deviation can be contaminated by artifacts, and they make a symmetric assumption on amplitude distribution.

fig = plot_waveforms(X, 'mean+/-std', times=times)
fig.suptitle('Plot mean+/-std of trials', fontsize=16)
for i_channel in range(n_channels):
    fig.axes[i_channel].set(ylabel=raw.ch_names[i_channel])
    fig.axes[i_channel].set_xlim(tmin, tmax)
    fig.axes[i_channel].set_ylim(ylims[i_channel])
fig.axes[n_channels - 1].set(xlabel='Time')
plt.show()
Plot mean+/-std of trials

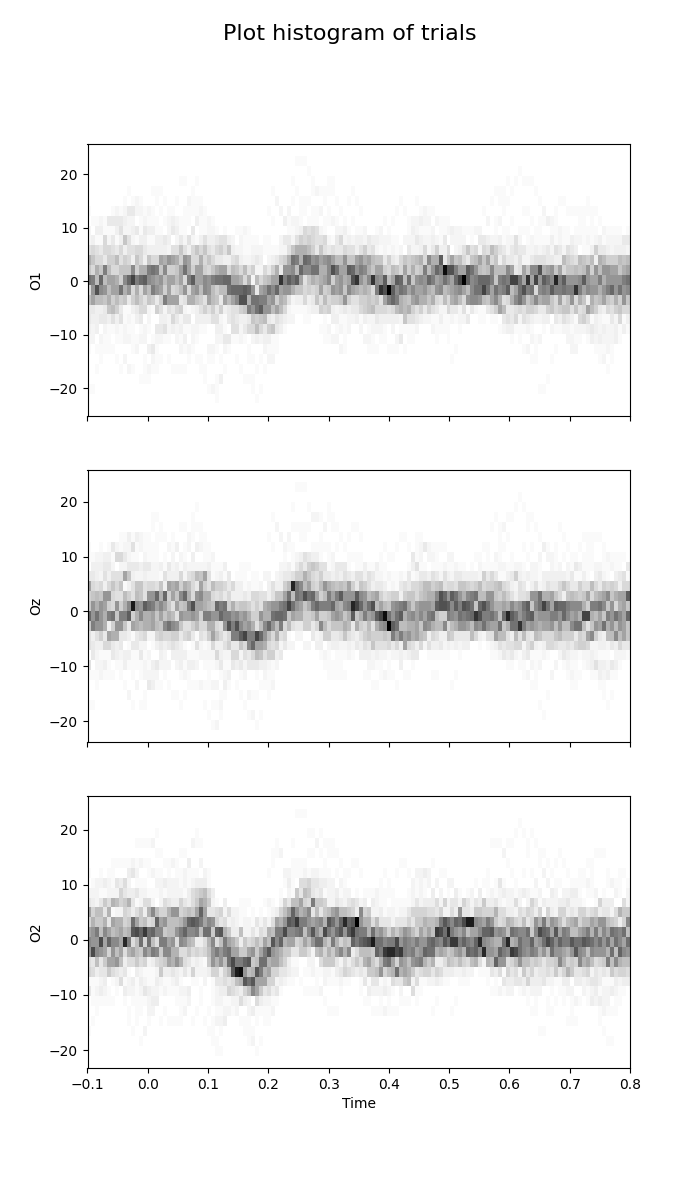

Plot histogram of trials

This plot estimates a 2D histogram of trials 1.

fig = plot_waveforms(X, 'hist', times=times, n_bins=25, cmap=plt.cm.Greys)
fig.suptitle('Plot histogram of trials', fontsize=16)
for i_channel in range(n_channels):
    fig.axes[i_channel].set(ylabel=raw.ch_names[i_channel])
    fig.axes[i_channel].set_ylim(ylims[i_channel])
fig.axes[n_channels - 1].set(xlabel='Time')
plt.show()
Plot histogram of trials

References

1

Improved estimation of EEG evoked potentials by jitter compensation and enhancing spatial filters A. Souloumiac and B. Rivet. 2013 IEEE International Conference on Acoustics, Speech and Signal Processing.

Total running time of the script: ( 0 minutes 1.148 seconds)
