Compare covariance and kernel estimators with different time windows

Comparison of covariance estimators for different EEG signal lengths and their impact on classification 1. Kernel estimators are also compared 2.

# Authors: Sylvain Chevallier and Quentin Barthélemy
#
# License: BSD (3-clause)

import numpy as np
import pandas as pd
from matplotlib import pyplot as plt
import seaborn as sns

from mne import Epochs, pick_types, events_from_annotations
from mne.io import concatenate_raws
from mne.io.edf import read_raw_edf
from mne.datasets import eegbci
from sklearn.model_selection import cross_val_score, StratifiedKFold
from sklearn.pipeline import make_pipeline

from pyriemann.estimation import Covariances, Kernels
from pyriemann.utils.distance import distance
from pyriemann.classification import MDM

Estimating covariance on synthetic data

Generate synthetic data, sampled from a distribution considered as the groundtruth.

rs = np.random.RandomState(42)
n_matrices, n_channels, n_times = 10, 5, 1000
var = 2.0 + 0.1 * rs.randn(n_matrices, n_channels)
A = 2 * rs.rand(n_channels, n_channels) - 1
A /= np.linalg.norm(A, axis=1)[:, np.newaxis]
true_covs = np.empty(shape=(n_matrices, n_channels, n_channels))
X = np.empty(shape=(n_matrices, n_channels, n_times))
for i in range(n_matrices):
    true_covs[i] = A @ np.diag(var[i]) @ A.T
    X[i] = rs.multivariate_normal(
        np.array([0.0] * n_channels), true_covs[i], size=n_times
    ).T

Covariances() class offers several estimators:

  • sample covariance matrix (SCM),

  • Ledoit-Wolf (LWF),

  • Schaefer-Strimmer (SCH),

  • oracle approximating shrunk (OAS) covariance,

  • minimum covariance determinant (MCD),

  • and others.

We will compare the distance of LWF, OAS and SCH estimators with the groundtruth, while increasing epoch length.

estimators = ["lwf", "oas", "sch"]
w_len = np.linspace(10, n_times, 20, dtype=int)
dfd = list()
for est in estimators:
    for wl in w_len:
        est_covs = Covariances(estimator=est).transform(X[:, :, :wl])
        dists = distance(est_covs, true_covs, metric="riemann")
        dfd.extend([dict(estimator=est, wlen=wl, dist=d) for d in dists])
dfd = pd.DataFrame(dfd)
fig, ax = plt.subplots(figsize=(6, 4))
ax.set(xscale="log")
sns.lineplot(data=dfd, x="wlen", y="dist", hue="estimator", ax=ax)
ax.set_title("Distance to groundtruth covariance matrix")
ax.set_xlabel("Number of time samples")
ax.set_ylabel(r"$\delta(\Sigma, \hat{\Sigma})$")
plt.tight_layout()
plt.show()

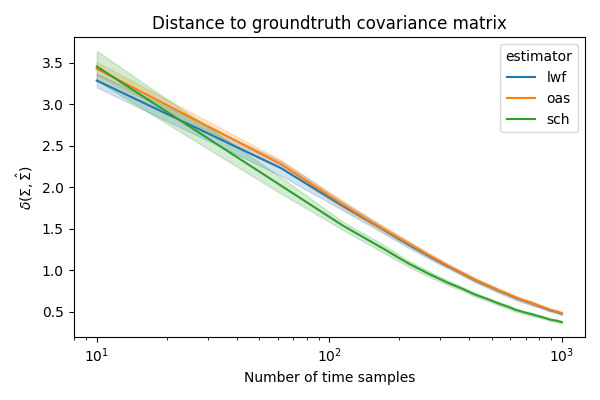

Distance to groundtruth covariance matrix

Choice of estimator for motor imagery data

Loading data from PhysioNet MI dataset, for subject 1.

event_id = dict(hands=2, feet=3)
subject = 1
runs = [6, 10, 14]  # motor imagery: hands vs feet
raw_files = [
    read_raw_edf(f, preload=True, stim_channel="auto")
    for f in eegbci.load_data(subject, runs)
]
raw = concatenate_raws(raw_files)
picks = pick_types(raw.info, eeg=True, exclude="bads")

# subsample elecs
picks = picks[::2]
# Apply band-pass filter
raw.filter(7.0, 35.0, method="iir", picks=picks, skip_by_annotation="edge")
events, _ = events_from_annotations(raw, event_id=dict(T1=2, T2=3))
event_ids = dict(hands=2, feet=3)
Extracting EDF parameters from /home/docs/mne_data/MNE-eegbci-data/files/eegmmidb/1.0.0/S001/S001R06.edf...
EDF file detected
Setting channel info structure...
Creating raw.info structure...
Reading 0 ... 19999  =      0.000 ...   124.994 secs...
Extracting EDF parameters from /home/docs/mne_data/MNE-eegbci-data/files/eegmmidb/1.0.0/S001/S001R10.edf...
EDF file detected
Setting channel info structure...
Creating raw.info structure...
Reading 0 ... 19999  =      0.000 ...   124.994 secs...
Extracting EDF parameters from /home/docs/mne_data/MNE-eegbci-data/files/eegmmidb/1.0.0/S001/S001R14.edf...
EDF file detected
Setting channel info structure...
Creating raw.info structure...
Reading 0 ... 19999  =      0.000 ...   124.994 secs...
Filtering a subset of channels. The highpass and lowpass values in the measurement info will not be updated.
Filtering raw data in 3 contiguous segments
Setting up band-pass filter from 7 - 35 Hz

IIR filter parameters
---------------------
Butterworth bandpass zero-phase (two-pass forward and reverse) non-causal filter:
- Filter order 16 (effective, after forward-backward)
- Cutoffs at 7.00, 35.00 Hz: -6.02, -6.02 dB

Used Annotations descriptions: ['T1', 'T2']

Influence of shrinkage to estimate matrices

Sample covariance matrix (SCM) estimation could lead to ill-conditionned matrices depending on the quality and quantity of EEG data available. Matrix condition number is the ratio between the highest and lowest eigenvalues: high values indicates ill-conditionned matrices that are not suitable for classification. A common approach to mitigate this issue is to regularize covariance matrices by shrinkage, like in Ledoit-Wolf, Schaefer-Strimmer or oracle estimators.

In addition to covariance matrices, kernel matrices are computed for three kernel functions:

  • radial basis function (RBF),

  • polynomial,

  • Laplacian.

estimators = [
    "cov-lwf", "cov-oas", "cov-sch", "cov-scm",
    "ker-rbf", "ker-polynomial", "ker-laplacian",
]
tmin = -0.2
w_len = np.linspace(0.2, 2, 10)
n_matrices = 45
dfc = list()

for wl in w_len:
    X = Epochs(
        raw,
        events,
        event_ids,
        tmin,
        tmin + wl,
        picks=picks,
        preload=True,
        verbose=False,
    ).get_data()
    for est in estimators:
        est_class, est_param = est.split('-')
        if est_class == "ker":
            covs = Kernels(metric=est_param).transform(X)
        else:
            covs = Covariances(estimator=est_param).transform(X)
        evals, _ = np.linalg.eigh(covs)
        dfc.extend([dict(estimator=est, wlen=wl, cond=e[-1] / e[0])
                    for e in evals])
dfc = pd.DataFrame(dfc)
fig, ax = plt.subplots(figsize=(6, 4))
ax.set(yscale="log")
sns.lineplot(data=dfc, x="wlen", y="cond", hue="estimator", ax=ax)
ax.set_title("Condition number of estimated matrices")
ax.set_xlabel("Epoch length (s)")
ax.set_ylabel(r"$\lambda_{\max}$/$\lambda_{\min}$")
plt.tight_layout()
plt.show()

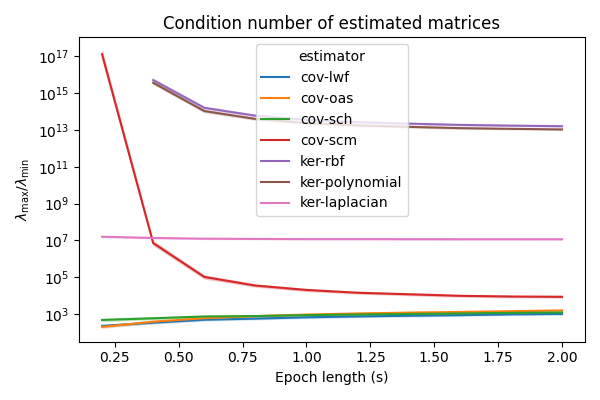

Condition number of estimated matrices
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/envs/v0.4/lib/python3.7/site-packages/pandas/core/arraylike.py:364: RuntimeWarning: invalid value encountered in log10
  result = getattr(ufunc, method)(*inputs, **kwargs)

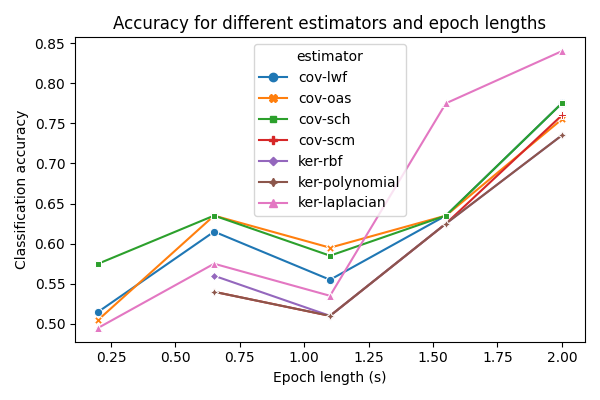

Picking a good estimator for classification

The choice of estimator have an impact on classification, especially when the matrices are estimated on short time windows.

tmin = 0.0
w_len = np.linspace(0.2, 2.0, 5)
n_matrices, n_splits = 45, 5
dfa = list()
sc = "balanced_accuracy"

cv = StratifiedKFold(n_splits=n_splits, shuffle=True, random_state=123)
for wl in w_len:
    epochs = Epochs(
        raw,
        events,
        event_ids,
        tmin,
        tmin + wl,
        proj=True,
        picks=picks,
        preload=True,
        baseline=None,
        verbose=False,
    )
    X = epochs.get_data()
    y = np.array([0 if ev == 2 else 1 for ev in epochs.events[:, -1]])
    for est in estimators:
        est_class, est_param = est.split('-')
        if est_class == "ker":
            clf = make_pipeline(Kernels(metric=est_param), MDM())
        else:
            clf = make_pipeline(Covariances(estimator=est_param), MDM())
        try:
            score = cross_val_score(clf, X, y, cv=cv, scoring=sc)
            dfa += [dict(estimator=est, wlen=wl, accuracy=sc) for sc in score]
        except ValueError:
            print(f"{est}: {wl} is not sufficent to estimate a SPD matrix")
            dfa += [dict(estimator=est, wlen=wl, accuracy=np.nan)] * n_splits
dfa = pd.DataFrame(dfa)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py:18: RuntimeWarning: invalid value encountered in log
  eigvals = operator(eigvals)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py:18: RuntimeWarning: invalid value encountered in log
  eigvals = operator(eigvals)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py:18: RuntimeWarning: invalid value encountered in log
  eigvals = operator(eigvals)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py:18: RuntimeWarning: invalid value encountered in log
  eigvals = operator(eigvals)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py:18: RuntimeWarning: invalid value encountered in log
  eigvals = operator(eigvals)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/envs/v0.4/lib/python3.7/site-packages/sklearn/model_selection/_validation.py:372: FitFailedWarning:
5 fits failed out of a total of 5.
The score on these train-test partitions for these parameters will be set to nan.
If these failures are not expected, you can try to debug them by setting error_score='raise'.

Below are more details about the failures:
--------------------------------------------------------------------------------
5 fits failed with the following error:
Traceback (most recent call last):
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/envs/v0.4/lib/python3.7/site-packages/sklearn/model_selection/_validation.py", line 680, in _fit_and_score
    estimator.fit(X_train, y_train, **fit_params)
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/envs/v0.4/lib/python3.7/site-packages/sklearn/pipeline.py", line 394, in fit
    self._final_estimator.fit(Xt, y, **fit_params_last_step)
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/classification.py", line 124, in fit
    for ll in self.classes_]
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/classification.py", line 124, in <listcomp>
    for ll in self.classes_]
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py", line 591, in mean_covariance
    C = mean_methods[metric](covmats, sample_weight=sample_weight, *args)
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py", line 458, in mean_riemann
    C = C12 @ expm(nu * J) @ C12
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py", line 95, in expm
    return _matrix_operator(C, np.exp)
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py", line 15, in _matrix_operator
    "Matrices must be positive definite. Add "
ValueError: Matrices must be positive definite. Add regularization to avoid this error.

  warnings.warn(some_fits_failed_message, FitFailedWarning)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py:18: RuntimeWarning: invalid value encountered in log
  eigvals = operator(eigvals)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py:18: RuntimeWarning: invalid value encountered in log
  eigvals = operator(eigvals)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py:18: RuntimeWarning: invalid value encountered in log
  eigvals = operator(eigvals)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py:18: RuntimeWarning: invalid value encountered in log
  eigvals = operator(eigvals)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py:18: RuntimeWarning: invalid value encountered in log
  eigvals = operator(eigvals)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/envs/v0.4/lib/python3.7/site-packages/sklearn/model_selection/_validation.py:372: FitFailedWarning:
5 fits failed out of a total of 5.
The score on these train-test partitions for these parameters will be set to nan.
If these failures are not expected, you can try to debug them by setting error_score='raise'.

Below are more details about the failures:
--------------------------------------------------------------------------------
5 fits failed with the following error:
Traceback (most recent call last):
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/envs/v0.4/lib/python3.7/site-packages/sklearn/model_selection/_validation.py", line 680, in _fit_and_score
    estimator.fit(X_train, y_train, **fit_params)
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/envs/v0.4/lib/python3.7/site-packages/sklearn/pipeline.py", line 394, in fit
    self._final_estimator.fit(Xt, y, **fit_params_last_step)
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/classification.py", line 124, in fit
    for ll in self.classes_]
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/classification.py", line 124, in <listcomp>
    for ll in self.classes_]
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py", line 591, in mean_covariance
    C = mean_methods[metric](covmats, sample_weight=sample_weight, *args)
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py", line 458, in mean_riemann
    C = C12 @ expm(nu * J) @ C12
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py", line 95, in expm
    return _matrix_operator(C, np.exp)
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py", line 15, in _matrix_operator
    "Matrices must be positive definite. Add "
ValueError: Matrices must be positive definite. Add regularization to avoid this error.

  warnings.warn(some_fits_failed_message, FitFailedWarning)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py:18: RuntimeWarning: invalid value encountered in log
  eigvals = operator(eigvals)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py:18: RuntimeWarning: invalid value encountered in log
  eigvals = operator(eigvals)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py:18: RuntimeWarning: invalid value encountered in log
  eigvals = operator(eigvals)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py:18: RuntimeWarning: invalid value encountered in log
  eigvals = operator(eigvals)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py:18: RuntimeWarning: invalid value encountered in log
  eigvals = operator(eigvals)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/envs/v0.4/lib/python3.7/site-packages/sklearn/model_selection/_validation.py:372: FitFailedWarning:
5 fits failed out of a total of 5.
The score on these train-test partitions for these parameters will be set to nan.
If these failures are not expected, you can try to debug them by setting error_score='raise'.

Below are more details about the failures:
--------------------------------------------------------------------------------
5 fits failed with the following error:
Traceback (most recent call last):
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/envs/v0.4/lib/python3.7/site-packages/sklearn/model_selection/_validation.py", line 680, in _fit_and_score
    estimator.fit(X_train, y_train, **fit_params)
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/envs/v0.4/lib/python3.7/site-packages/sklearn/pipeline.py", line 394, in fit
    self._final_estimator.fit(Xt, y, **fit_params_last_step)
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/classification.py", line 124, in fit
    for ll in self.classes_]
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/classification.py", line 124, in <listcomp>
    for ll in self.classes_]
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py", line 591, in mean_covariance
    C = mean_methods[metric](covmats, sample_weight=sample_weight, *args)
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py", line 458, in mean_riemann
    C = C12 @ expm(nu * J) @ C12
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py", line 95, in expm
    return _matrix_operator(C, np.exp)
  File "/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/base.py", line 15, in _matrix_operator
    "Matrices must be positive definite. Add "
ValueError: Matrices must be positive definite. Add regularization to avoid this error.

  warnings.warn(some_fits_failed_message, FitFailedWarning)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:470: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
fig, ax = plt.subplots(figsize=(6, 4))
sns.lineplot(
    data=dfa,
    x="wlen",
    y="accuracy",
    hue="estimator",
    style="estimator",
    ax=ax,
    ci=None,
    markers=True,
    dashes=False,
)
ax.set_title("Accuracy for different estimators and epoch lengths")
ax.set_xlabel("Epoch length (s)")
ax.set_ylabel("Classification accuracy")
plt.tight_layout()
plt.show()
Accuracy for different estimators and epoch lengths
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/examples/signal/plot_covariance_estimation.py:223: FutureWarning:

The `ci` parameter is deprecated. Use `errorbar=None` for the same effect.

  dashes=False,

References

1

Riemannian classification for SSVEP based BCI: offline versus online implementations S. Chevallier, E. Kalunga, Q. Barthélemy, F. Yger. Brain–Computer Interfaces Handbook: Technological and Theoretical Advances, 2018.

2

Beyond Covariance: Feature Representation with Nonlinear Kernel Matrices # noqa L. Wang, J. Zhang, L. Zhou, C. Tang, W Li. ICCV, 2015.

Total running time of the script: ( 1 minutes 17.503 seconds)

Gallery generated by Sphinx-Gallery
