Estimate mean of SPD matrices with NaN values

Estimate the mean of SPD matrices corrupted by NaN values 1.

# Author: Quentin Barthélemy, Sylvain Chevallier and Florian Yger
#
# License: BSD (3-clause)

import numpy as np
from matplotlib import pyplot as plt
import pandas as pd
import seaborn as sns

from pyriemann.datasets import make_covariances
from pyriemann.utils.mean import mean_riemann, nanmean_riemann
from pyriemann.utils.distance import distance_riemann
def corrupt(covmats, n_corrup_channels_max, rs):
    n_matrices, n_channels, _ = covmats.shape
    all_n_corrup_channels, all_corrup_channels = np.zeros(n_matrices), []
    for i_matrix in range(n_matrices):
        n_corrupt_channels = rs.randint(n_corrup_channels_max + 1, size=1)
        corrup_channels = rs.choice(
            np.arange(0, n_channels), size=n_corrupt_channels, replace=False)
        for i_channel in corrup_channels:
            covmats[i_matrix, i_channel] = np.nan
            covmats[i_matrix, :, i_channel] = np.nan
            all_corrup_channels.append(i_channel)
        all_n_corrup_channels[i_matrix] = n_corrupt_channels
    return covmats, all_n_corrup_channels, all_corrup_channels

Generate data

rs = np.random.RandomState(42)
n_matrices, n_channels = 100, 10
covmats = make_covariances(
    n_matrices, n_channels, rs, evals_mean=100., evals_std=20.)

# Compute the reference, the Riemannian mean on all SPD matrices
C_ref = mean_riemann(covmats)

# Corrupt data randomly
n_corrup_channels_max = n_channels // 2
print("Maximum number of corrupted channels: {} over {}".format(
    n_corrup_channels_max, n_channels))

covmats, all_n_corrup_channels, all_corrup_channels = corrupt(
    covmats, n_corrup_channels_max, rs)

fig, ax = plt.subplots(nrows=1, ncols=1)
ax.set(title='Histogram of the number of corrupted channels',
       xlabel='Channel count', ylabel='Occurrences')
plt.hist(all_n_corrup_channels, bins=np.arange(n_corrup_channels_max + 2) - .5)
plt.show()

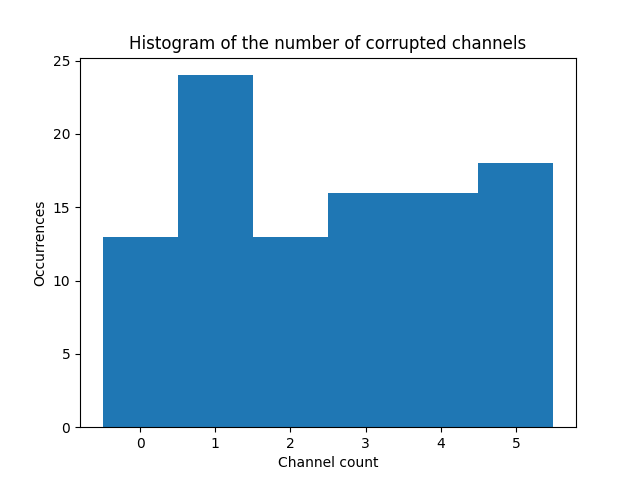

Histogram of the number of corrupted channels
Maximum number of corrupted channels: 5 over 10
fig, ax = plt.subplots(nrows=1, ncols=1)
ax.set(title='Histogram of the indices of corrupted channels',
       xlabel='Channel index', ylabel='Occurrences')
plt.hist(all_corrup_channels, bins=np.arange(n_channels + 1) - .5)
plt.show()

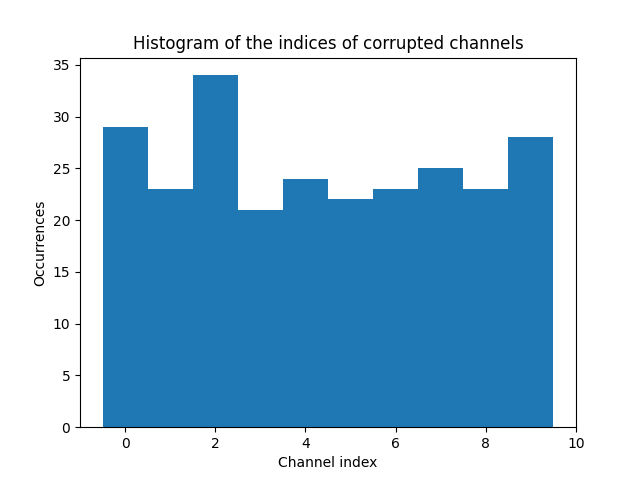

Histogram of the indices of corrupted channels

Estimate means of SPD matrices

Riemannian mean could only be computed on full-rank matrices. A common strategy is called matrix deletion, that is removing all matrices with corrupted channels before computing mean. This results in discarding useful information as uncorrupted channels are removed from the computation of the mean. Nan-mean uses as much information as possible to estimate the mean 1.

# Euclidean NaN-mean
C_naneucl = np.nanmean(covmats, axis=0)

# Riemannian NaN-mean
C_nanriem = nanmean_riemann(covmats)

# Riemannian mean, after matrix deletion: average only uncorrupted matrices
isnan = np.isnan(np.sum(covmats, axis=(1, 2)))
covmats_ = np.delete(covmats, np.where(isnan), axis=0)
perc = len(covmats_) / n_matrices * 100
print("Percentage of uncorrupted matrices: {:.2f} %".format(perc))
C_mdriem = mean_riemann(covmats_)
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:700: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')
Percentage of uncorrupted matrices: 13.00 %

Compare means

Compare distances between the different means and the reference.

d_naneucl = distance_riemann(C_ref, C_naneucl)
print(f"Euclidean NaN-mean, distance to ref = {d_naneucl:.3f}")

d_nanriem = distance_riemann(C_ref, C_nanriem)
print(f"Riemannian NaN-mean, distance to ref = {d_nanriem:.3f}")

d_mdriem = distance_riemann(C_ref, C_mdriem)
print(f"Riemannian mean after deletion, distance to ref = {d_mdriem:.3f}")

# Riemannian NaN-mean gives the best result, and Riemannian mean after matrix
# deletion is worst than Euclidean NaN-mean.
Euclidean NaN-mean, distance to ref = 0.081
Riemannian NaN-mean, distance to ref = 0.051
Riemannian mean after deletion, distance to ref = 0.127

Evaluate influence of corrupted channels

Repeat the previous experiment, varying the maximum number of corrupted channels 1.

covmats_orig = make_covariances(
    n_matrices, n_channels, rs, evals_mean=100., evals_std=20.)
C_ref = mean_riemann(covmats_orig)

df = []
for n_corrup_channels_max in range(0, n_channels // 2 + 1):
    covmats = np.copy(covmats_orig)
    covmats, _, _ = corrupt(covmats, n_corrup_channels_max, rs)

    C_naneucl = np.nanmean(covmats, axis=0)
    C_nanriem = nanmean_riemann(covmats)
    isnan = np.isnan(np.sum(covmats, axis=(1, 2)))
    covmats_ = np.delete(covmats, np.where(isnan), axis=0)
    C_mdriem = mean_riemann(covmats_)

    res_naneucl = {'n_corrupt': n_corrup_channels_max,
                   'dist': distance_riemann(C_ref, C_naneucl),
                   'Means': 'Euclidean NaN-mean'}
    res_nanriem = {'n_corrupt': n_corrup_channels_max,
                   'dist': distance_riemann(C_ref, C_nanriem),
                   'Means': 'Riemannian NaN-mean'}
    res_mdriem = {'n_corrupt': n_corrup_channels_max,
                  'dist': distance_riemann(C_ref, C_mdriem),
                  'Means': 'Riemannian mean after deletion'}
    df += [res_naneucl, res_nanriem, res_mdriem]
df = pd.DataFrame(df)

g = sns.catplot(data=df, x="n_corrupt", y="dist", hue="Means", kind="point",
                legend_out=False)
g.set(title="Influence of corrupted channels")
g.set_axis_labels("Maximum number of corrupted channels",
                  "Distance to reference")
plt.tight_layout()
plt.show()

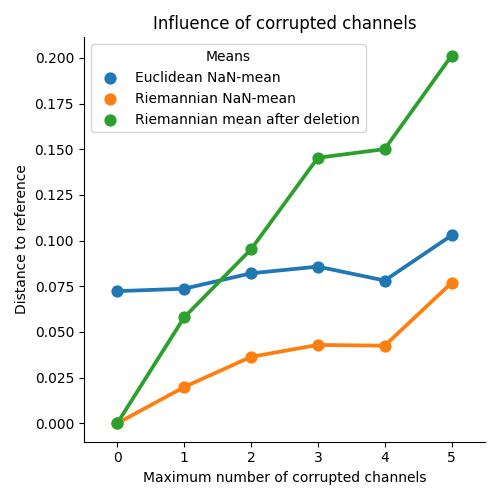

Influence of corrupted channels
/home/docs/checkouts/readthedocs.org/user_builds/pyriemann/checkouts/v0.4/pyriemann/utils/mean.py:700: UserWarning: Convergence not reached
  warnings.warn('Convergence not reached')

References

1(1,2,3)

Geodesically-convex optimization for averaging partially observed covariance matrices F. Yger, S. Chevallier, Q. Barthélemy, and S. Sra. Asian Conference on Machine Learning (ACML), Nov 2020, Bangkok, Thailand. pp.417 - 432.

Total running time of the script: ( 0 minutes 17.557 seconds)
